Explore EX30
specifications
Key dimensions. Standard features and upgrades. All you need to find the right Volvo car for you.
Platform
Single Motor Extended Range
from ₹41,00,000
Driveline
RWD
Transmission
Automatic
Number of seats
5
Weight (Running Order Mass)
1,850 kg
Trailer max weight
1,600 kg
Roof load max weight
75 kg
Platform
Electric Range
Up to 480 km
Electric energy consumption combined (NEDC)
14.5 kWh/100km
Power
200 kW / 272 hp
Max torque
343 Nm
0-100 km/h
5.3 s
Top speed
180 km/h
Charging
Battery energy (nominal)
69 kWh
Battery charging duration 0-100% (3-phase 16A)
8 h
Battery charging duration 10-80% (DC 175kW)
28 m
Features and upgrades
Safety & Security

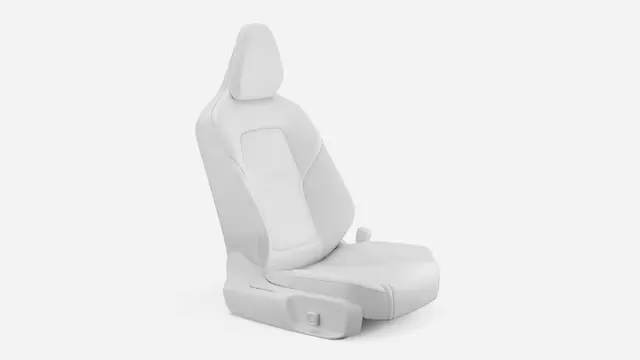

Whiplash injury protection
In the event of a rear impact, clever front seat design helps reduce the risk of whiplash injury by controlling the occupant’s movement into the seat. Effective head restraints on all five seating positions help provide added protection.
Inflatable Curtain
Our Inflatable Curtain helps protect your head and neck in a side collision or roll-over. Helping to provide protection for occupants sitting on the sides, it deploys from the roof above the doors. The Inflatable Curtain also helps protect in some frontal collisions and stays inflated for several seconds to provide prolonged protection in the event of secondary impacts.

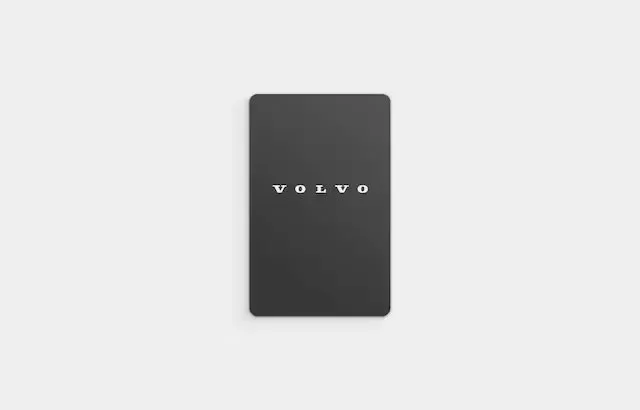

Key card
This smart wallet-sized key card gives you full access to the car. Simply keep the card in your wallet and you can unlock your car by swiping the card over an NFC reader in the roof pillar and then drive away by putting the card in its dedicated place in the wireless phone charger. When leaving the car, a swipe of the card over the NFC reader will lock the car.

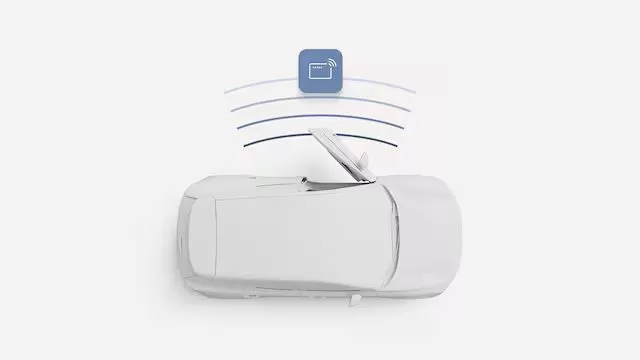

Digital key plus
This enhanced digital key facilitates everyday life with your Volvo. Just download it to your smartphone. Then all you need to unlock and drive your Volvo is to carry your phone. The car recognises your phone and gives you access as you approach the car. This also makes it easy to share the car with friends and family – just send an invite via the app to the person you want to share your car with. The digital key also allows for future smart services. Please note: The car is prepared for digital key technology. Enablement depends on the phone manufacturer launches, and the functionality will be delivered via over the air updates when available.

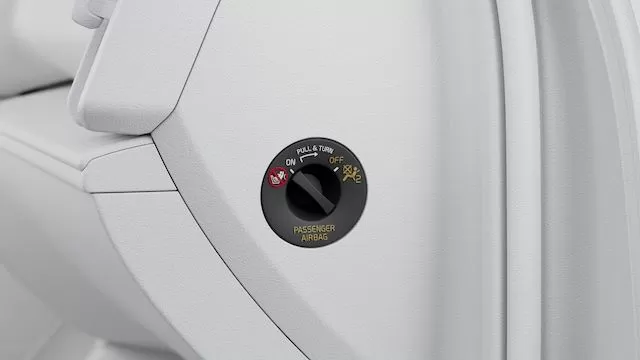

Passenger airbag cut-off switch
This switch allows you to conveniently disengage the passenger airbag if you intend to put a rearward-facing child seat in the front passenger seat. The switch can only be accessed with the door open. The airbag status is shown in the overhead console and as a message in the centre display.

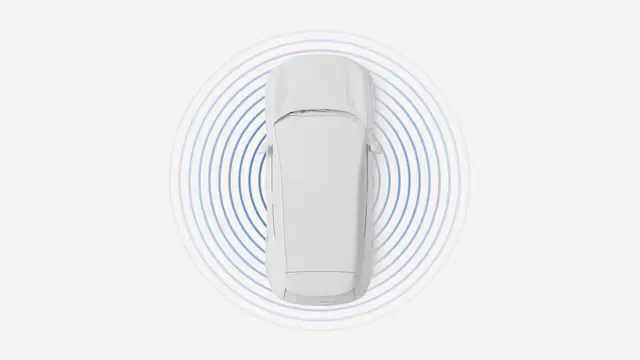

Alarm
The alarm helps guard your Volvo when parked and deter unwelcome visits. It also reacts to movement inside the car, the breaking of a window and if someone tries to steal your wheels or tow your car away. It is automatically activated when you lock the car and is connected to the doors, bonnet and tailgate. A level sensor deters thieves from jacking up the car to steal your wheels or tow it away. The movement sensor and level sensor can be switched off so people or pets can remain inside the parked and locked car provided that it's appropriate due to temperature, weather and other external conditions.

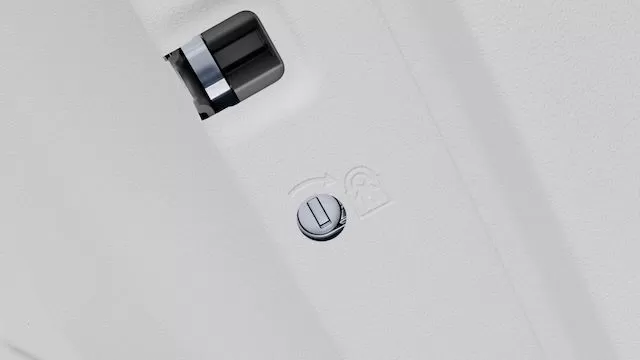

Child safety lock
The manually operated child safety lock helps prevent the rear doors from being opened from the inside.

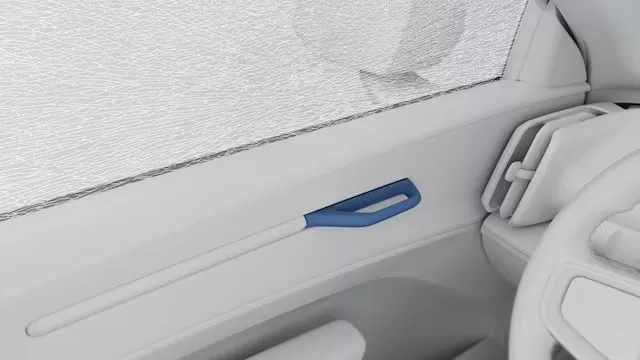

Central lock, double pull
If you've locked the car from the outside and a thief smashes a door window, this function makes it impossible to open any of the doors from the inside.

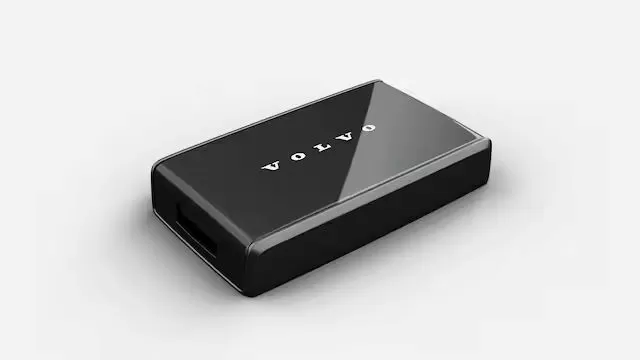

Key tag
This feature allows you to unlock the car and drive away just by carrying your key tag. Just keeping the key tag in your pocket or purse will unlock the car as you approach it. Then you only have to sit down and drive away. And to lock the car after you've parked, just close the door and walk away.

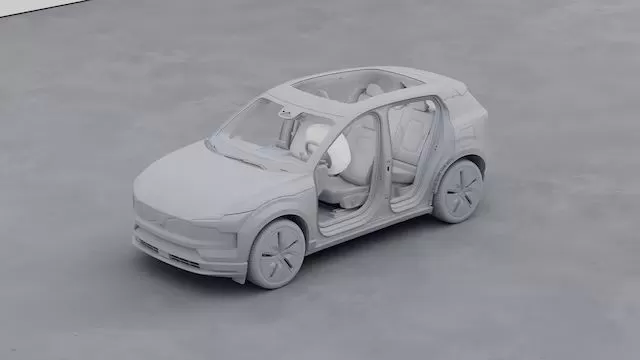

Driver airbag
Together with the safety belt, the driver airbag helps protect the head, face and chest in a frontal collision. And if the impact is so low that the airbag isn't needed, the system will only deploy the safety belt pre-tensioner if necessary.

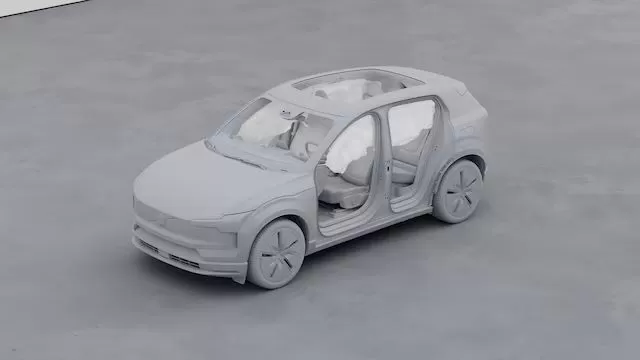

Side impact protection
The car's side impact protection system helps protect you and your passengers in a side collision. The body's steel framework displaces the impact of a side collision away from the occupants to other parts of the car body. The extremely strong side structure helps withstand a severe side impact – even with a larger vehicle. The side structure also helps protect the battery in a collision. The Inflatable Curtain and the front seat side airbags interact with the body structure to help provide further protection for the front seat occupants. Inner-side airbags further enhance upper body and head protection for the driver and front-seat passenger. In the rear, the body structure and Inflatable Curtain help protect the passengers in the outer rear seats.

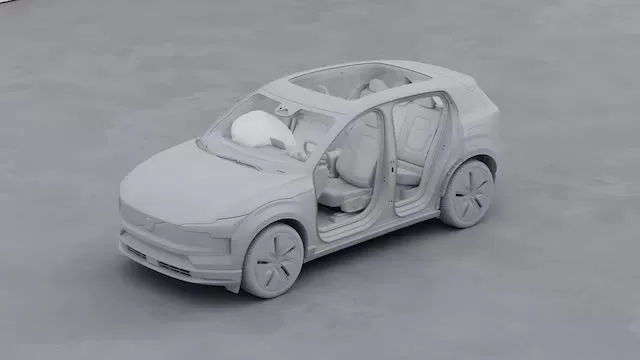

Dual-stage airbags, passenger
Together with the safety belt, the passenger airbag helps protect the head, face and chest in a frontal collision. It's intelligent too: to optimise protection, the airbag adapts the level of inflation to the force of the impact. And if the impact is so low that the airbag isn't needed, the system will only deploy safety belt pre-tensioners if necessary. To make it possible to mount a child seat in the front passenger seat, the passenger airbag can easily be disconnected using a cut-off switch.

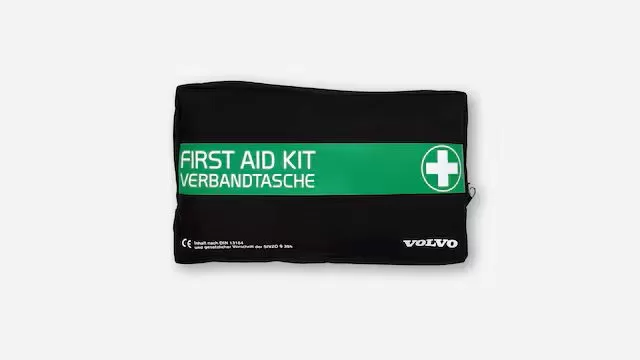

First-aid kit
With this practical first-aid kit you are prepared to provide first-aid in the event of an emergency. The kit contains most bandages and equipment needed to tackle immediate injuries in a secure way. The first-aid kit is approved in accordance with DIN 13164, with detailed first aid instructions in seven languages.

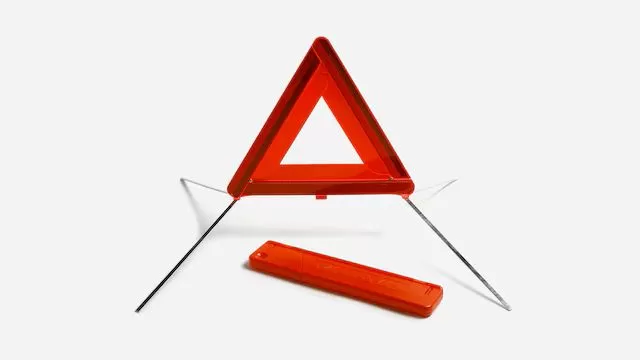

Warning triangle
Conveniently fitted in the front load compartment, the warning triangle is always easily accessible – even when the car is fully loaded. This lightweight wide-angle reflector stands upright to alert other road users even in strong winds and on slippery surfaces. It folds easily and stores in its own case.

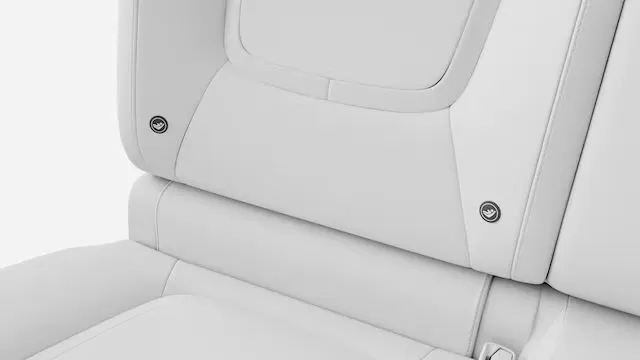

ISOFIX mounting points, rear seat
ISOFIX is the safest and most convenient way to fit a child seat in your Volvo. Simply click the ISOFIX-prepared child seat into the ISOFIX mounting points in the rear seat, and the child seat is securely attached to the car’s bodywork. Located behind covers in the lower section of the outer rear seat backrests, the ISOFIX mounting points are easy to access when needed.

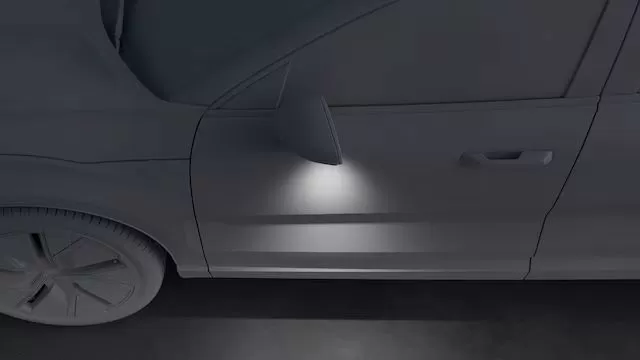

Door mirrors with ground lighting
When unlocking or approaching the car, LED lamps integrated into the door mirrors light the ground close to the car for your convenience and an enhanced feeling of security.
Drivers support
- Rain sensor
- Pedestrian, cyclist and scooter steering avoidance
- Oncoming lane mitigation
- Oncoming mitigation by braking
- Intersection autobrake
- Advanced sensing technology
- Comfort chassis
- Blind Spot Information System (BLIS)
- Door opening alert
- LED headlights
- Post impact braking
- Speed limiter
- Collision avoidance and mitigation
- Low speed autobrake, rear
- Adaptive cruise control
- Auto-dimmed inner and door mirrors
- One pedal drive
- Driver alert system
- Lane Keeping Aid
- Park Pilot Assist
- Park assist, front and rear
- Lane departure warning
- 360° camera, 3D view
- Traffic Jam Assist
- 12.3-inch centre display
- Vanity mirrors
- Rear collision warning
- Rear Cross Traffic Alert with autobrake
- Pilot Assist
- Front Cross Traffic Alert
- Run-off road mitigation
Pack & Load
- Front load compartment
- Flexible load floor
- Power tailgate
- Power outlet, load compartment
- LED illumination, load compartment
- Flat-folding two-split rear seat
Tech & Sound
- Over-the-air updates (OTA)
- Volvo EX30 App
- Google Assistant, Google Maps and Google Play Store
- Front and rear USB-C ports
- 5G capability
- Digital Audio Broadcasting (DAB+)
- Wireless Apple CarPlay and Android Auto
- Harman Kardon Premium Sound
- Wireless phone charging
Interior
- Tailored sports steering wheel
- Textile interior cabin floor mats
- Large door pockets
- Front storage
- Removable rear storage box
- Rear phone storage
- Pixel Knit & Nordico upholstery
- Ambience themes
- Interior illumination, high level
- Particle decor
- Air vent decor, blue
- Sliding cupholders and storage
Exterior
- Panoramic roof, fixed
- Roof spoiler, high-gloss black
- LED headlights with active high beam
- Rear LED lights
- Summer tyres
- 19″ 5-spoke glossy black diamond cut
- Door mirror covers, high-gloss black
- Roof top in contrast colour, high-gloss black
- Fog lamps, rear
Seats
- 5 Seats
- Seat track position sensors, driver and passenger
- Power driver seat
- Power passenger seat
- Power 4-way lumbar support, driver
Performance
- Shift-by-wire single speed transmission
- Rear-wheel drive (RWD)
- Hill Start Assist
- Hill Descent Control
Climate
- Heat pump
- Two-zone climate system
- Air quality system
- Air quality measurement and remote cabin air pre-cleaning
Charging
11kW On-Board Charger (OBC)
Car dimensions
Exterior
Vehicle height at kerb weight with one person
1 550 mm
Width (mirrors incl)
2 032 mm
Front track width
1 590 mm
Width
1 838 mm
Width (mirrors folded)
1 940 mm
Rear track width
1 595 mm
Vehicle length
4 233 mm
2 650 mm
Turning circle
11 m
Interior
Max head room front
1 058 mm
Shoulder room rear
1 346 mm
Hip room front
1 379 mm
Head room rear
974 mm
Leg room front
1 063 mm
Hip room rear
1 175 mm
Shoulder room front
1 400 mm
821 mm
Storage
Cargo floor width between wheel housing
994 mm
Second seatback to tailgate – top of second seatback
566 mm
First seatback to tailgate – top of first seatback
1 355 mm
Cargo capacity (max) – second row up
400 l
Cargo capacity (max) – rows folded
1 000 l
Cargo capacity (front)
7 l
